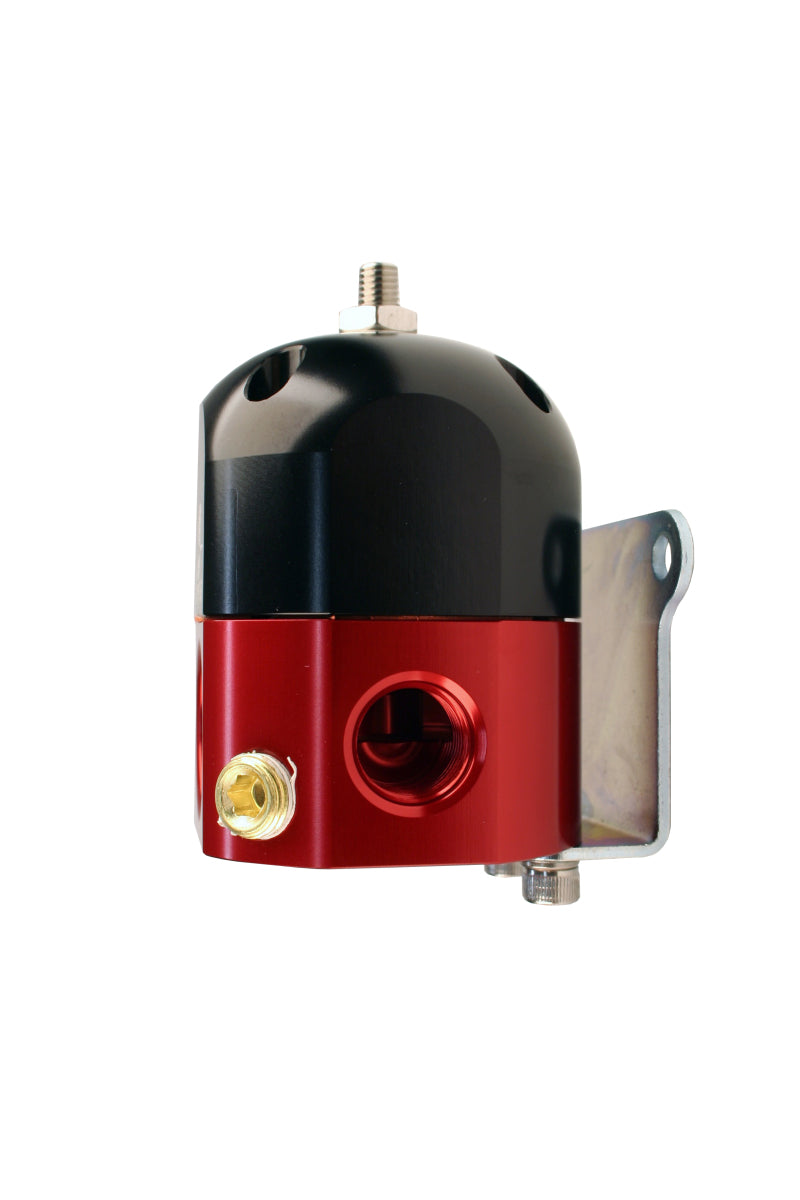

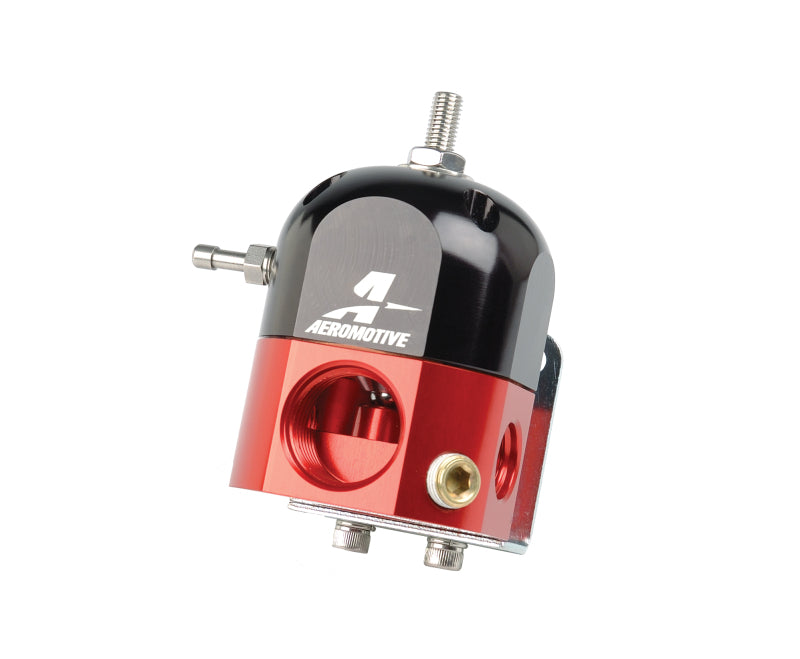

Aeromotive A1000 Carbureted Bypass Regulator - 2-Port

Aeromotive A1000 Carbureted Bypass Regulator - 2-Port

$231.95
$231.95
Agotado
The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or...
26 la gente está viendo esto ahora mismo

SKU: AER13204
Proveedora: Aeromotive
tipo: Fuel Pressure Regulators
Etiquetas: EPA:N/A Fuel Delivery>Fuel Pressure Regulators LTL:N MPN:13204 Non-CARB:Y Prop65:Y SpecialOrder:N TURN14_ID:4340006

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industril by products.

Size Chart

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

Ver todos los detalles

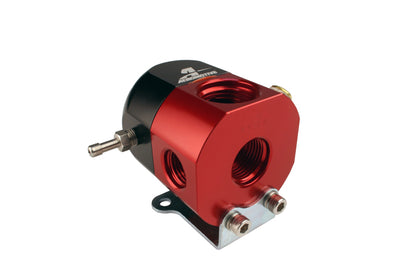

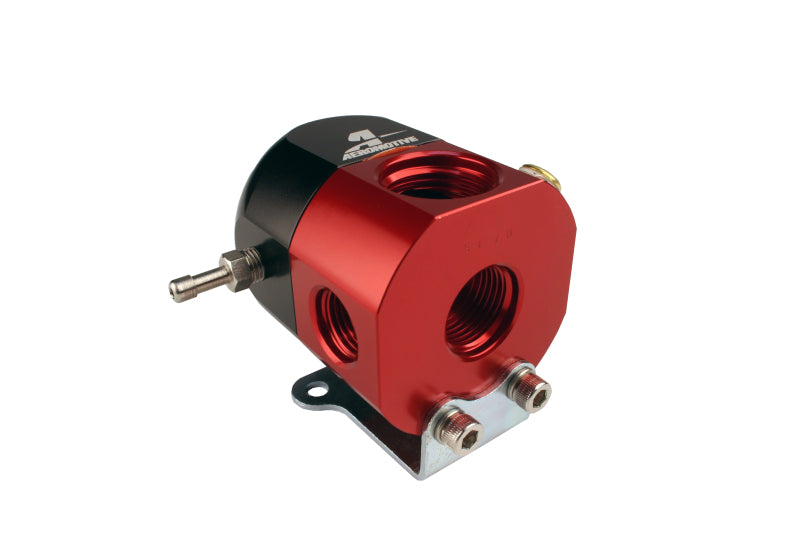

The A1000 Bypass Regulator was designed for use with our A1000 Fuel Pump or similar style EFI pumps in a carbureted application. This regulator is perfect for naturally aspirated or ?blow-through? supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-08 return port. P/N 13204 provides (2) ORB-06 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost. Bypass design provides the ultimate, dynamic fuel delivery system. Ideal for converting from fuel injection to carburetion using the stock, in-tank pump. EFI conversions will require a larger-than-stock return line for proper low pressure control.?Note: Requires AN-08 return line from bottom of regulator back to top of the tank.
